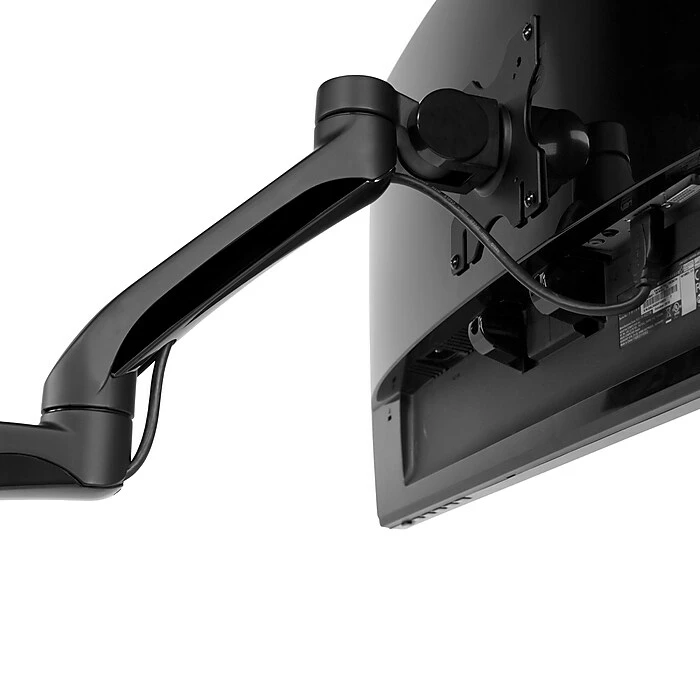

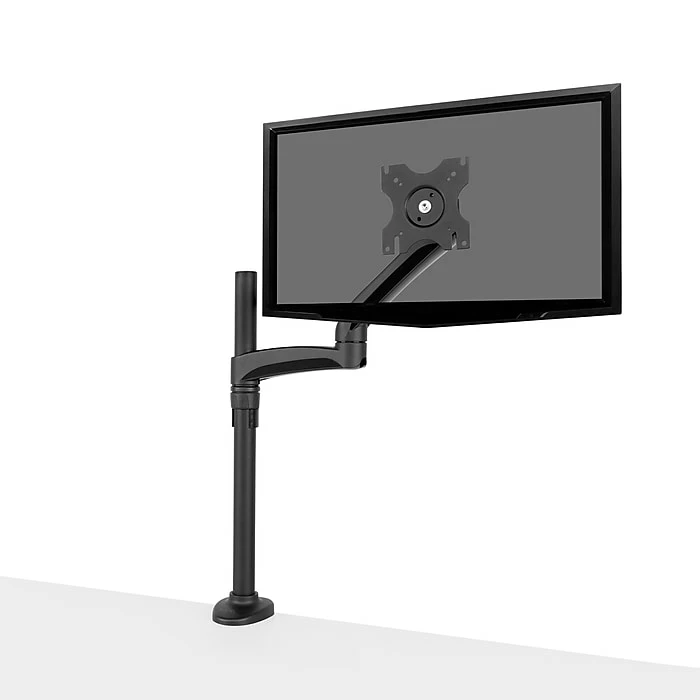

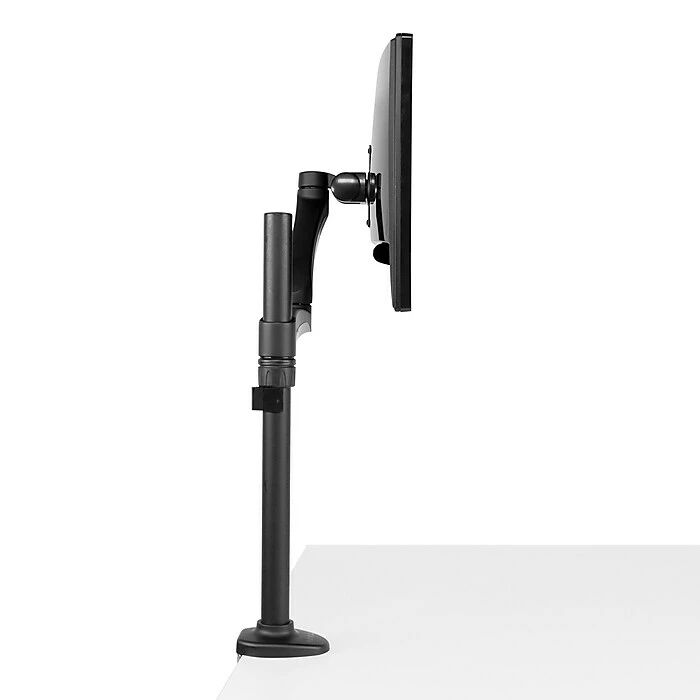

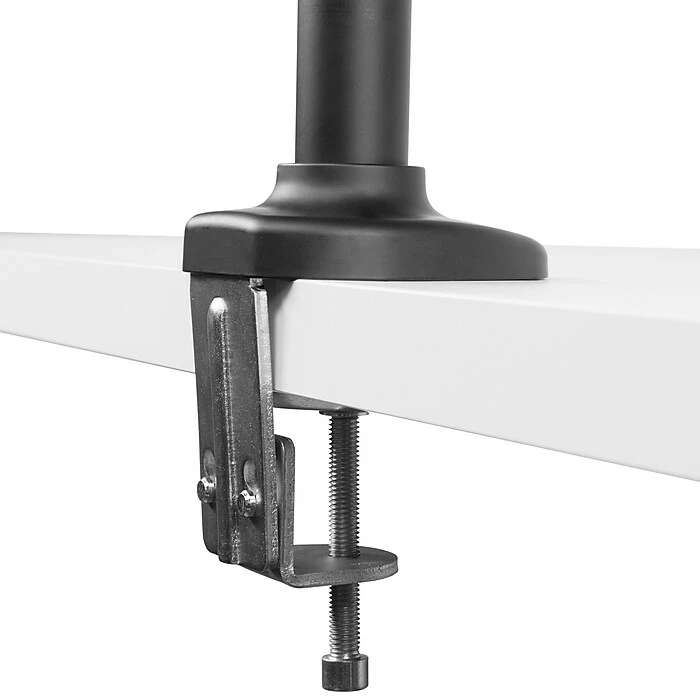

The DM1000 is a VESA compatible desktop monitor mount designed for screens measuring up to 27 inches. Its convenient clamp mechanism gives you the freedom to install it on any surface with a grommet hole or ledge up to three inches thick, and features integrated cable management for a clean and professional appearance. With 17 inches of reach, the DM1000’s articulating arm allows you to easily tilt, pan and swivel your monitor into the most optimal viewing position, and can be easily elevated to ensure proper line-of-sight.
- Fits most flat panel computer monitors and TVs from 13” to 27”
- Supports monitors up to 19.8 lb (9 kg)
- Accommodates VESA sizes of 75×75 and 100×100
- Accessible tilt mechanism provides a +65° and -90° viewing angle, 90° of swivel in either direction
- Single arm provides up to 16.9” (43 cm) of reach, 16.5” (42 cm) of height adjustment
- 360° monitor rotation for vertical and horizontal screen orientation
- Integrated cable management system
- Aluminum and steel construction with durable powder coated finish
- Installation manual and all monitor mounting hardware for either desk edge or grommet hole installation is included
- Five year manufacturer’s warranty
Specifications
| Adjustable | Adjustable |
|---|---|
| Adjustable Maximum Height (Inches) | 16.5 |
| Arm Lift (Inches) | 16.5 |
| Depth in Inches | 4.3 |
| Height in Inches | 30.7 |
| Material of Item | Aluminum |
| Monitor Mount & Stand Type | Mounts |
| Monitor Size Supported | Up to 27″ Monitor |
| Number of Bays | 1 |
| Pivot Angle (Degrees) | 25 |
| Rotation Angle (Degrees) | 360 |
| Series or Collection | DM |
| Swivel Angle (Degrees) | 360 |
| Tilt Angle | -90° to 65° |
| True Color | Black |
| VESA Mounting Dimensions (mm.) | 100 x 100, 75 x 75 |
| Warranty Information | 2 Year |
| Weight (lbs.) | 5.5 |
| Width in Inches | 15.4 |
